Every switchboard, control panel and drive cabinet with a filter fan has one small, cheap part doing a big job: the filter mat. It sits behind the grille, catches the dust before it gets inside, and lets cool air through so your electrical gear doesn't cook. When that mat clogs up, problems start quietly, and they usually get noticed only when something trips, fails or catches fire.
Here's why regular filter changes matter, how to tell when a mat is due, and how to replace it in a couple of minutes.
Shop replacement switchboard & enclosure fan filter mats, cut to any size
What the filter actually does
Electrical components make heat. VSDs, power supplies, PLCs, contactors and transformers all give off heat while they run, and in a closed enclosure that heat has nowhere to go. A filter fan pulls cooler outside air in through one grille and pushes hot air out through an exhaust grille. The filter mats in those grilles stop dust, lint and debris from being dragged in with the air.
So the mat has two jobs: keep the dirt out and let the air through. A clean mat does both. A clogged one fails at the second, which is the one that matters most.
What happens when a filter gets clogged
1. Airflow drops and the cabinet heats up
As dust builds up, the mat gets harder to breathe through. The fan keeps spinning, but it moves far less air. Less air in means less heat out, and the temperature inside the enclosure climbs. From the outside, the fan still looks like it's working.
2. Components wear out faster
Heat is one of the main things that shortens the life of electronics. A common rule of thumb in electrical engineering is that every 10°C rise above a component's rated temperature can roughly halve its life. Capacitors in drives and power supplies are especially sensitive. A blocked $5 filter can take years off equipment worth thousands.
3. Nuisance trips and unplanned downtime
Most VSDs and many controllers have over-temperature protection. When the cabinet gets too hot, they derate or shut down. That means a stopped pump, conveyor, air handler or production line, often on the hottest day of the year when you can least afford it.
4. Dust gets inside anyway
An old, overloaded mat can start shedding the dust it's holding, or sag and leave gaps at the edges. Fine dust then settles on circuit boards, terminals and heatsinks. Dust holds heat in, can soak up moisture, and in some conditions can lead to tracking and short circuits.
5. The fan works harder and fails sooner
A fan pulling against a blocked filter is under extra strain. Fans are cheap compared with what they protect, but a dead fan means no cooling at all until someone notices.
How often should you change enclosure fan filters?
Most fan manufacturers recommend replacing the mats at least once a year. That's the minimum for a clean indoor plant room. Many sites need more often:
- Clean indoor areas (offices, comms rooms, plant rooms): check every 3–6 months, replace at least yearly.
- Light industrial (warehouses, commercial kitchens, car parks): check every 1–3 months.
- Heavy dust (workshops, factories, woodworking, mines, quarries, construction sites, farms): check monthly and replace as soon as the mat looks dirty.
The simplest approach is to add filter checks to your existing maintenance schedule or test-and-tag rounds. It takes seconds per panel.
Signs your filter mat needs replacing
- The mat has gone from white to grey or brown.
- You can see a layer of dust on the outer face, or it looks matted and clogged.
- Airflow at the exhaust grille feels weak.
- The inside of the cabinet feels hotter than usual, or you're seeing over-temperature alarms or trips.
- The mat is brittle, torn, sagging, or doesn't sit flat any more.
- You can't remember when it was last changed. If nobody knows, it's due.
Can I just clean them?
Lightly dusty mats can be blown out with low-pressure air or rinsed, dried and refitted. But each clean leaves fine dust deep in the fibres, and the mat slowly loses its ability to hold dirt and let air through. Cleaning buys you time between changes; it doesn't replace them. Because a new mat costs only a few dollars, replacing is usually the better call, especially on critical panels.
How to replace a filter mat (no tools needed on most fans)
- Unclip the outer grille cover on the filter fan or exhaust grille. The mat sits behind it.
- Remove the old mat and dispose of it. Try not to knock the dust into the fan.
- Fit the new mat flat, with no gaps or folds at the edges, so air can't bypass the filter.
- Clip the cover back on.
On most filter fans you don't need to open the enclosure or isolate the board to do this, so it's quick and safe. Always follow your site's safety procedures.
Getting the right size
This is where most people get caught out. Measure the mat, not the fan. The mat is smaller than the fan housing, so a fan sold as 204mm usually takes a mat of around 170mm. Measure the old mat's width and height in millimetres. If there's no old mat, measure the inside of the grille cover where the mat sits.
Enclosure fans come in a wide range of sizes across brands, and OEM replacement mats can be expensive or hard to get. That's why we cut ours to your exact measurements.
Replacement fan filter mats from The Ezy Filter

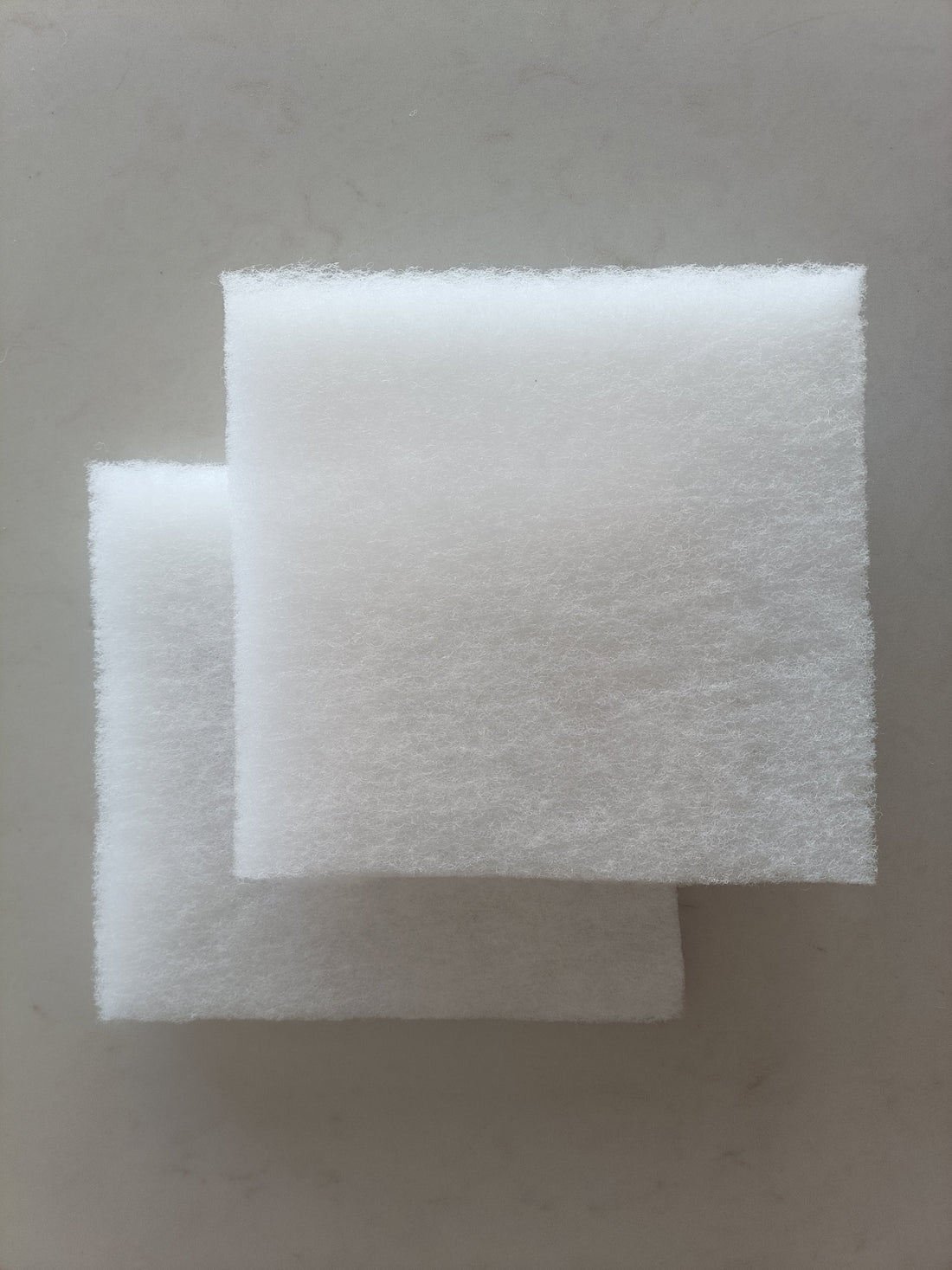

Our switchboard & enclosure fan filter mats are made to replace the worn mats in your filter fans and exhaust grilles:
- Cut to your size. Tell us the measurements and we cut them for you.
- Any quantity. One mat, or a year's supply for every panel on site.
- Fits most brands of standard filter fans and exhaust grilles.
- G3 filter grade to catch dust and airborne debris while keeping air moving.
- 18mm thick, the standard thickness used in most enclosure filter fans.
- Built for tough sites: handles heat up to 100°C and high humidity, with low flammability.
They suit switchboards, control panels, electrical enclosures, VSD and drive cabinets, server and comms cabinets, and machine control boxes.
Tip for maintenance teams and electricians: order a full set for every panel at once and keep a spare set in the van or store room. Then a filter change is never held up waiting for parts.
Order your cut-to-size fan filter mats now
The bottom line
A clogged filter mat costs nothing to ignore until it costs a lot: a failed drive, a stopped line, or a callout on a weekend. Checking your enclosure filters regularly and replacing them at least once a year is one of the cheapest ways to protect your electrical equipment and keep it running.
Not sure what size you need, or ordering for a large site? Contact us and we'll help you sort it out.
Generic replacement media. Not manufactured by or affiliated with any fan brand.
